TK Series Coaxial Speaker
TK series loudspeaker is driven by a coaxial speaker, mainly used in venues such as Karaoke rooms with large SPL, live performance, conference rooms, multi-functional hall and etc.
TK Series Coaxial Speaker
The product has the following characteristics:
1. Coaxial driver, unique one-magnet-dual-loop technology, tweeter and bass diaphragm make the sound in the same axis, so that treble and bass sound synchronously, with no time difference, clear voice, high fidelity, accurate middle and high low-frequency positioning, and even sound field distribution, both horizontal and vertical dispersion angles are 120 °.
2. Simple and neat appearance, novel shape, small size, 12 " speaker is equivalent to normal 10" speaker size, light weight, easy carry and suspensed.
3. Stable performance, HF feedback protection is designed in speaker crossover circuit to protect the speaker and ensures its stability and reliability.
4. Convenient suspension, suspension device can meet a variety of ways, very easy to fix on the wall and ceiling, and speaker angles can be adjusted in full range.
SPECIFICATIONS:
COMPONENTS:LH157544 -8Ω
RATED OUTPUT POWER:400W
FREQUENCY RESPONSE:55Hz-18KHz
SENSITIVITY:98dB(1M/1W)
SPL:124dB
Net Weight:20.5G
Gross Weight:22.5KG

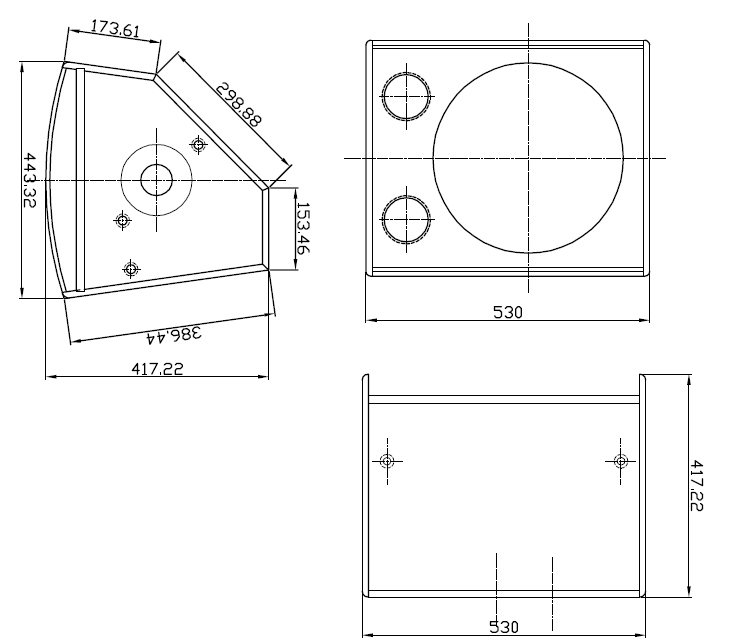

DIMENTION:443*417*530mm
