TK series active speakers consist of digital power amplifier and Coaxial loudspeaker drive unit which has high efficiency, high energy output and excellent sound quality, perfect protection and good EMC characteristics. The range of supply voltage is AC 90-264V 45Hz-65Hz which is suitable for general global power. The product is mainly used for great sound pressure level of the Kara OK hall, performing arts, conference room, multi-function hall environments.
Characteristics:
1.Speaker adopt coaxial speaker and use of original technology with magnetic double-loop. Speaker of high pitch and bass sound film pronouncing in the same axis, realized the high pitch and bass sounds simultaneously, no time difference, Clear voice, high fidelity, high frequency positioning accurate, sound field distribution. Both horizontal and vertical spread angle are120 °
2.The external form of speaker is a simple and neat appearance, novel model, small size.12 "is equivalent to normal 10" speaker size, light weight and big power.
3.Speaker performance is stable, reliable and durable. Speaker of the divider line has designed treble whistle protection device and the use of Speaker protection is Stable and reliable.
4.Convenient hanging, the speaker hanging device designed to meet a variety of ways to hoisting, very convenient to fixed in the walls and ceiling, and can comprehensive adjust speaker angle .
5.Speaker power components adopt PFC technology switching power, suitable for the whole supply voltage range AC 90-264V 45Hz-65Hz global power.
6.TK series active speaker amplifier parts adopt class D digital power amplifier circuits, energy conversion efficiency, low-carbon environment.
7.Plug and play, user-friendly, clear indication, easy manipulating for nonprofessionals.
8.High efficiency, safe output power dynamic compression function and temperature protection circuit eliminate user’s worry.
SPECIFICATIONS:
COMPONENTS:LH126444
RATED OUTPUT POWER:300W
FREQUENCY RESPONSE:60Hz-18KHz
SENSITIVITY:97dB(1M/1W)
THD:<0.1%
SPL:122dB
POWER SUPPLY REQUIREMENTS:AC 90-264V 45Hz-65Hz

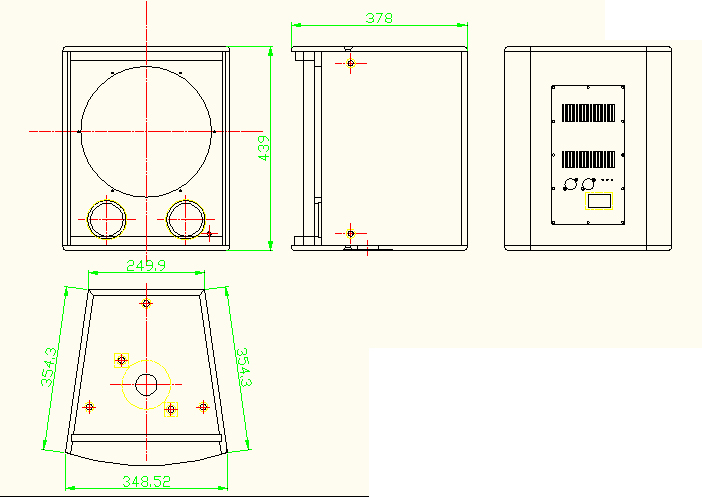

DIMENTION:(349+245)*378*439mm
