| CT2844X Full range Loudspeaker | CT1801XC Subwoofer | |
| Components | 2× MD850-16Ω + 44Ti | 18” WF WLO18100A |
| Power: | 250W Rms | 500W Rms |
| Max. Power: | 500W | 1000W |
| Frequency Response: | 100Hz-20KHz | 30Hz-300Hz(-3dB) |
| Impedance: | 8 Ω | 8 Ω |
| SPL: | 98dB (1m/w) | 106dB(1m/w) |
| Peak Sound Pressure: | 120dB | 134dB |
| Horizontal: | 100° | |
| Vertical: | depending on array height and curvature | |
| Crossover: | 2700Hz | |

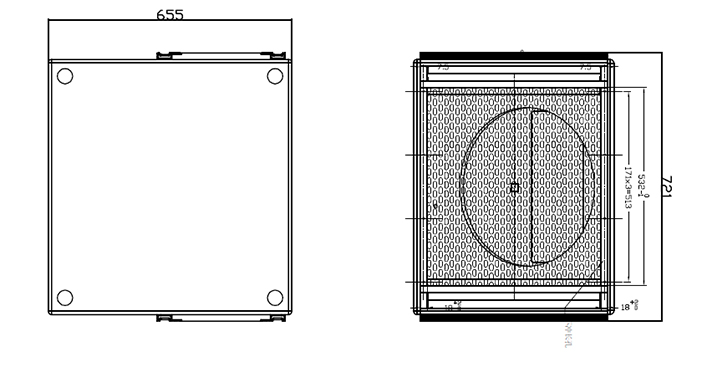

| Dimension: | (front 272+rear178)×363 deep×686 high | 686 W×540 D×450 H (mm) |
| Weight: | 24.6kg | 49kg |

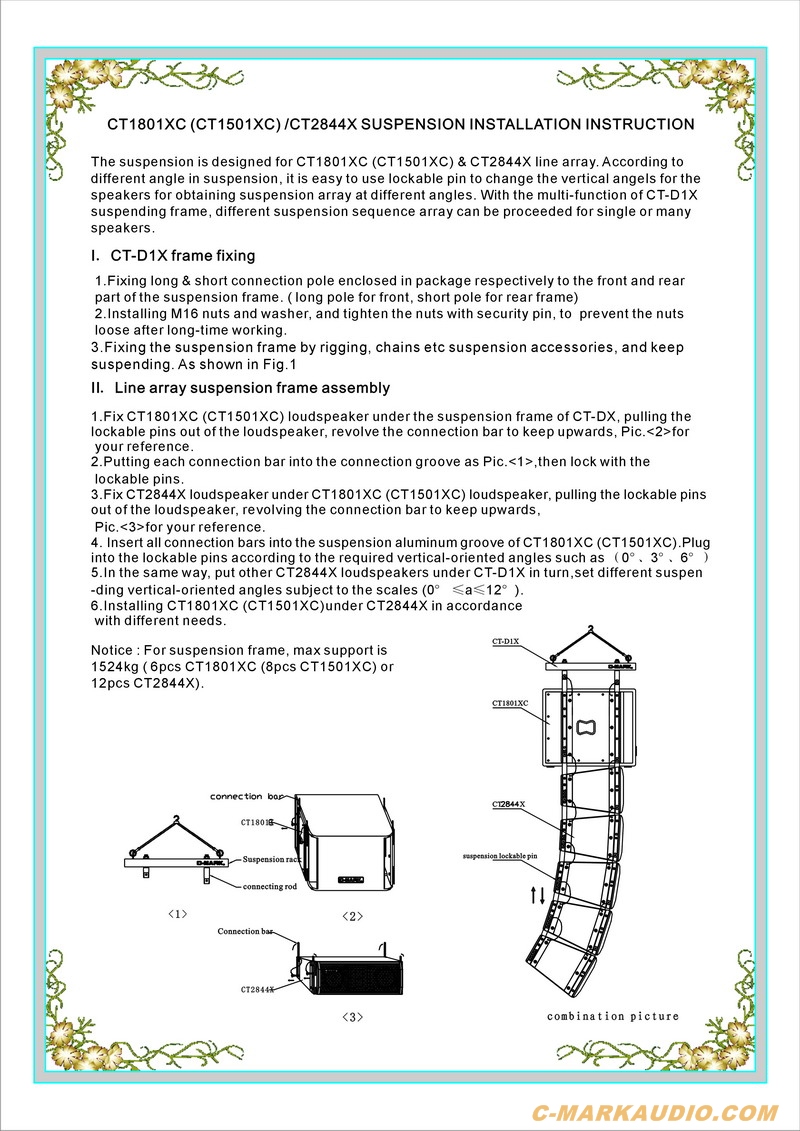

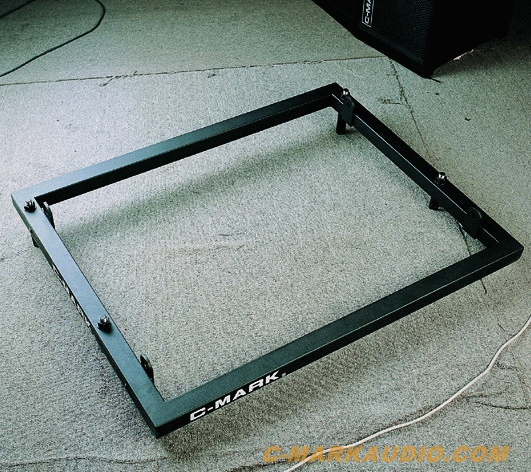

CT-D1X Suspension Hardware and Instructions
