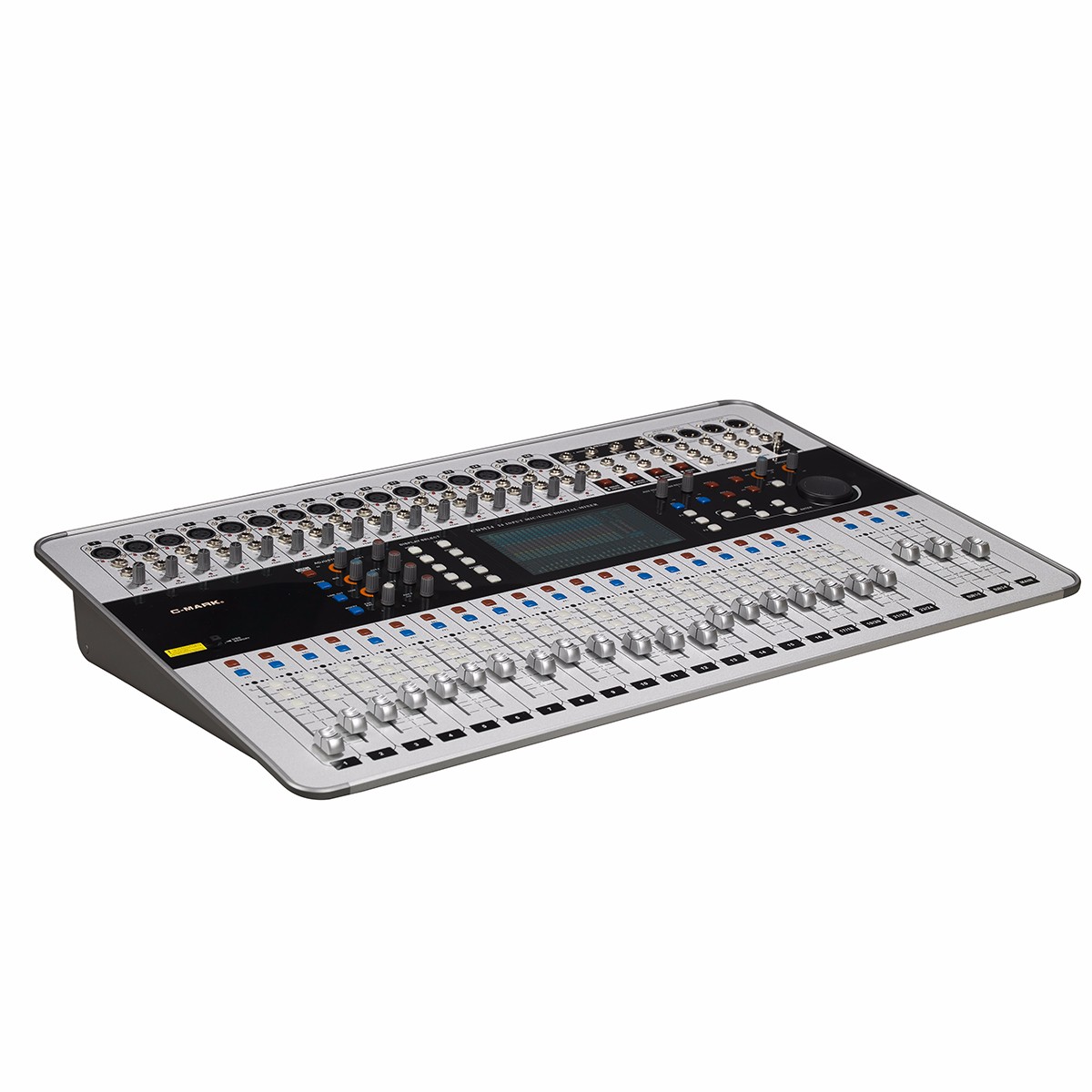

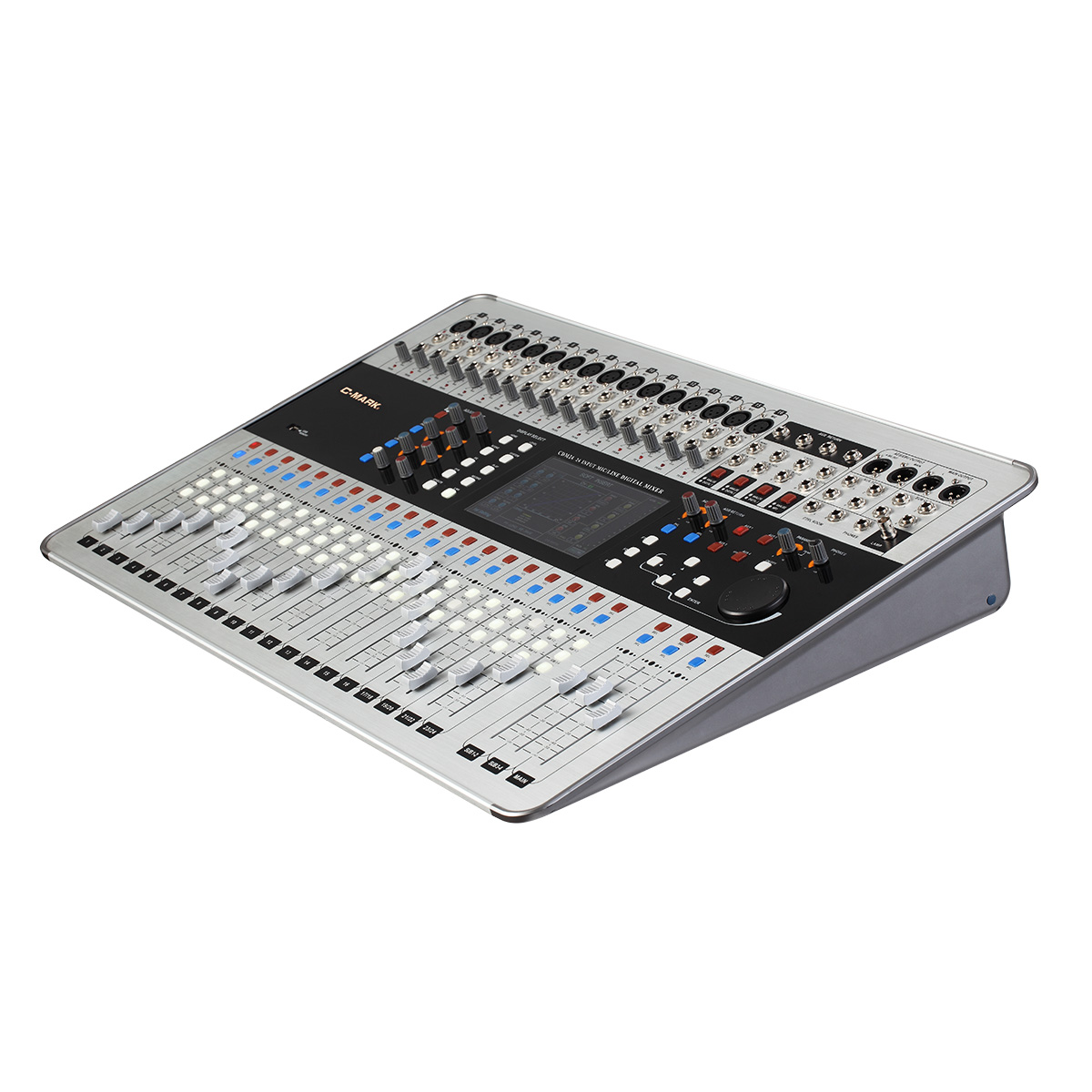

The CDM24 is the upgraded digital mixer of the world first universal type digital mixer CDM12. The CDM24 not only inherit the last generation digital mixer’s friendly design, networking, easy operation, high cost-effectiveness, stylish design but also has big improvement in digital input/output interfaces, audio processing, steadiness, can be widely used in performances, conferences, schools, recording and so on.
CDM24 Digital Mixer Highlight Features:
1. the fourth generation SHARC floating processor as the core, professional digital audio algorithm
2. 24 channels mixing input including 16 mic/line and 4 x 2 stereo analogue input, 2 SPDIF coaxial, 2 SPDIF optical fiber, 1 AES/EBU, 1 on-board digital audio source
3.12 mixing buses, supporting Main output, monitor output, 4 Channel Group output, 4 Channel AUX output, with interface type of balance analogue, AES/EBU, SPDIF optical fiber and coaxial

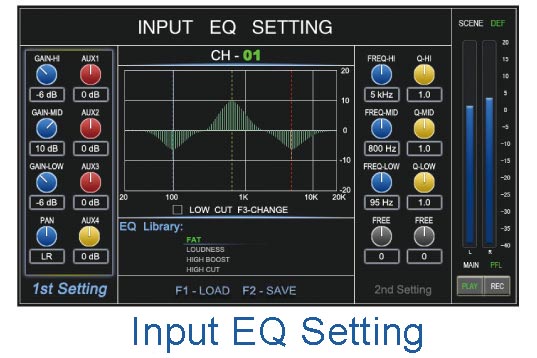

4. dsp functions including high pass filter, 3 band PEQ, Noise Gate, Compressor and Enhancer, auto gain AVC, delay, delete sound of the wind.
5. +48V phantom power and phase switch on each Mic input channel
6. stylish aluminum shell design, dual power supply engines, 100mm fader, TFT large colorful screen

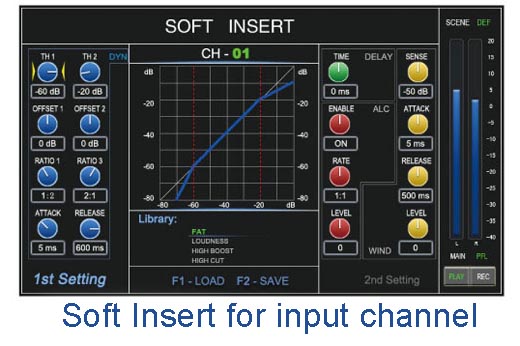

7. built-in digital effector and Insert port
8. real time display of input/output level, with PFL and AFL level and monitor
9. 50 scene settings and tune out, fader tracking mode, abundant pre-setting and users’ definition storage available
10. USB memory interface, supporting digital recording to the U disk, including linear and MP3 formats

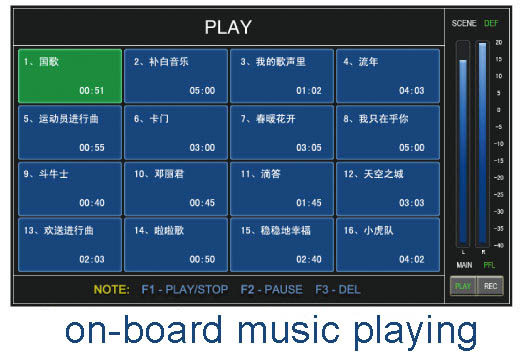

11. Built-in digital player, one-key play memory music
12. IEEE 802.3 network interface, connected LAN or WIFI network, realize PC remote control via TCP / IP and wireless WIFI Ipad control, able to connect with AudioNet network audio platform directly for network transmitting and control for building up a complete digital network audio system from audio source to terminal loudspeakers.
